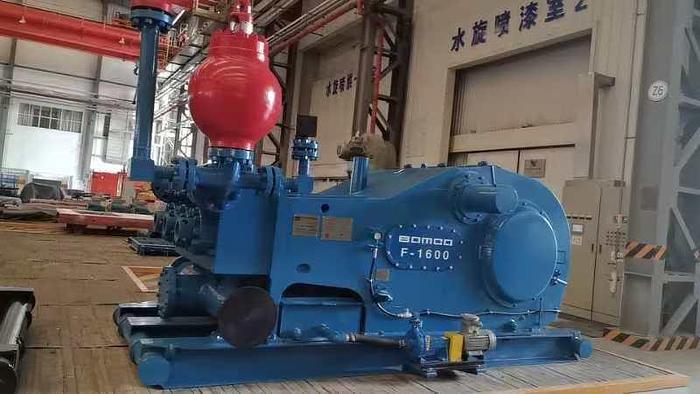

F-1600 Mud pump BOMCO make complete

F-1600 Mud pump BOMCO make complete

Unit

1.00

with 2 each DC motors and blowers that match

the F-1600 HP pump with the following specs

and all accessories required single acting

triplex, with Forged steel interchangable fluid

end module Casting steel crank shaft

Rated strokes 120 spm

Nominal power ratings (1193kw) 1600hp

Max liner size: 7" X 12" (305 mm)

Maximum working pressure (5000psi)

Maximum discharge capaity 46.54 L/S

(5") I.D. of discharge

I.D. of suction pipe (12")

pressure releife valve, stroke counter

KB-75 pulsation dampner

0-60mpa (0-8700) pressure gauge

Forced lubrication gear pump

Electrical Liner wash pump assembly

Jib crane for with trolley for 1600 hp Electrical Liner wash pump assembly

All Accessories required to run the pump

Big and small pulley

Main four runner skid mud pump

Main four runner skid mud pump

Super charging pump, 55kw

Motor skid

V-belts and all safety gaurds

 60Hz DC motor and attachment

Suction and discharge lines and filters

Hammer unions ect

50 mtr Electrical and transmission cables

to connect the mud pump with SCR Room Maintenance and operating manuals in

engli Parts book in english (3 sets)

Offers should include mud pump with all requirements required to run the pump

Mud pump required to be installed on SCR rig 60 HZ
