Item 0524 : 2004 IDECO DRILLING UNIT 1000 HP

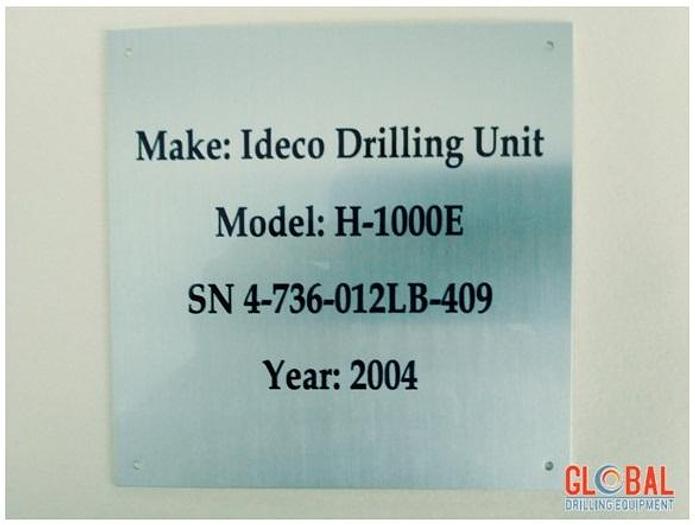

IDECO H-1000E DRILLING UNIT 1000 HP

(Mounted on 3-Axle Trailer)

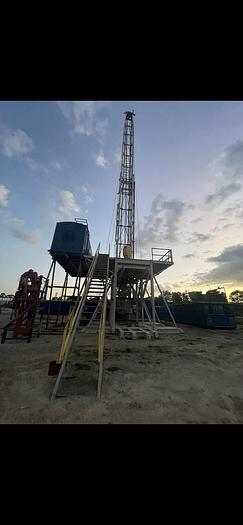

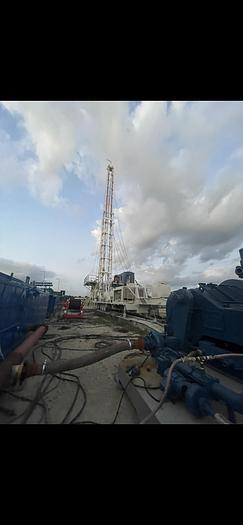

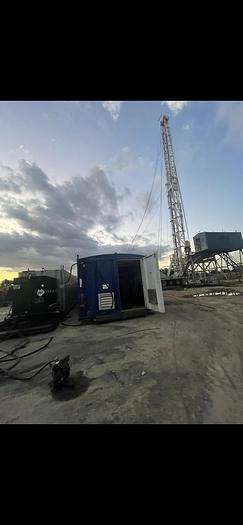

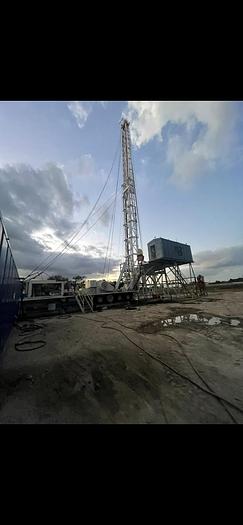

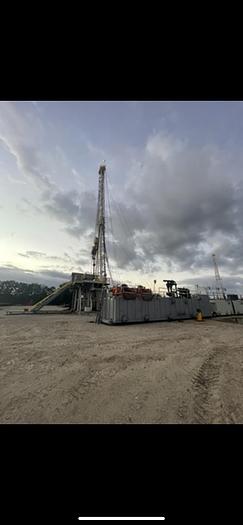

A. DRILL RIG :

IDECO H1000 LAND DRILLRIG – 1000HP

Description:

Serial No. Mast: 4-736-012B-409

– Mast: 117‘ H, SHL Telescoping Mast

– Drilling line 1-1/8” (10 lines are strung)

– Static Hook Load: 358,000 lbs

– 5 Sheave Travel Block, – Racking Board

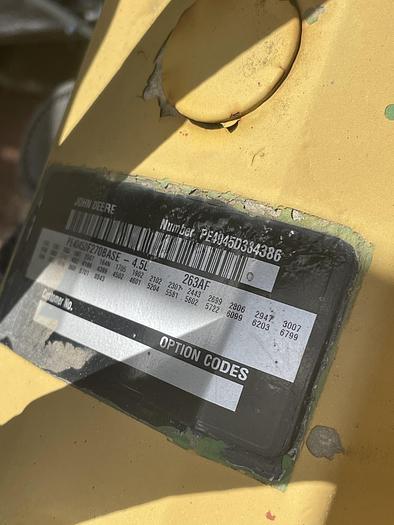

– Standpipe w/ Manifold w/ 4” x 2” Valve, Pressure gauge, Kelly hose 5”– JOHN DEERE 4.5L Eng

w/DENNISON Hyd Pump,

– Mounted on 3-Axle Trailer w/ side

– Mounted Drill Line Spool w/ 1-1/4” Drill Line

– p/b Hyd motor, Ideco Elevated Rotary Drive, Handrails – HyD tank 1600 lts, – Assist Water Brake

–Rotary Table, Size : 27-1/2”

Page 2 of 3

44994 Interstate 10, Winnie Texas 77665, USA

Phone : +1 800 956 8720; Email : info@globaldrillingequipment.com

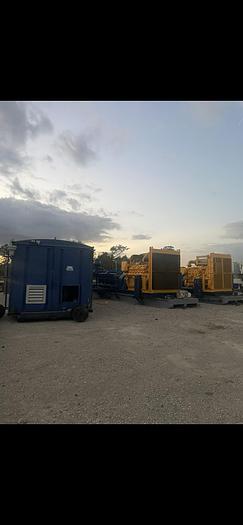

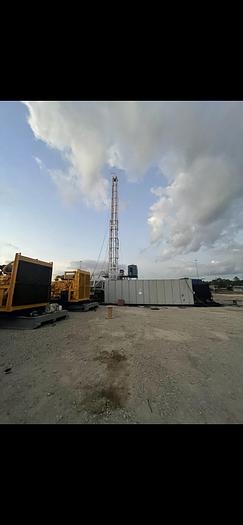

B. PRIMARY POWER :

SCR (Silicon Controlled Rectifier) House

Condition: Used

- 4-Bays

- With 2-Units of CAT SR4 Generator Sets, 1000HP

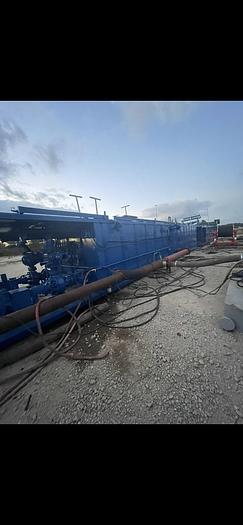

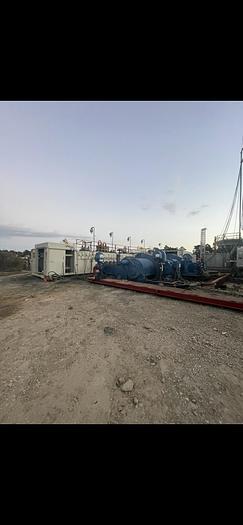

C. MUD PUMPS (2-UNITS) :

HHF-1000 Triplex Mud Pump - #1

- Serial Number : 06-191

- 558 GPM; Rated Input Power: 1000HP (746 kW); Rated Stroke: 140 SPM

- Maximum Liner Dia. : 6-3/4” (170 mm); Rated Stroke Distance : 10” (254 mm)

- Gear Ratio : 4.207 : 1; Sunction Pipe Size : 12” (304.8mm), Flanged

- Discharge Pipe Size: API 5-1/8” (130mm) Flanged, 5000 PSI; Valve

ChamberSize: API 6#

- Lubrication : Forced and splash; Discharge Flow and Pressure : Refer Table

1and Table 2

- with EMSCO F-1000 Sunction / Discharge Modules

- Master Skidded with Plumbing (13’6” W x 33’ L x 10” H)

CGH NB-1300 Triplex Mud Pump - #2

- Serial Number : 2004-003

- 575 GPM; With GE 752 Hi Torq Traction Motor, S/N : 88302168

- And Gulf Electroquip 3600 RPM Blower Motor

- With EMSCO 1300 Suction / Discharge Modules

- Master Skidded (26’ L x 11’ W x 11’ H)

D. BOP Control System :

Shaffer BOP Control Systems

Manufacturer: Shaffer

Condition: Used

Description:

 Shaffer Control Manifold

Page 3 of 3

44994 Interstate 10, Winnie Texas 77665, USA

Phone : +1 800 956 8720; Email : info@globaldrillingequipment.com

 Shaffer Remote Control System

 6-Stations

F. BLOW OUT PREVENTER :

- Size : 11”

G. SOLIDS CONTROL :

2-Linear Motion SHALE SHAKERS

4" - 12 Cone Desilter

10" - 2 Cone Desander

H. CHOKE MANIFOLD :

Choke Manifold 3-1/8″ 5000 PSI

Condition : Used

Size : 3-1/8”

Skid Mounted

I. MUD PREPARATION HOUSE :

- SIZE : 40’ x 8’ x 8’

J. WATER / DIESEL STORAGE :

- Square Tank

- 5000LBS With Pumping Room
