Item 0562 : 2006 Failing CF-15

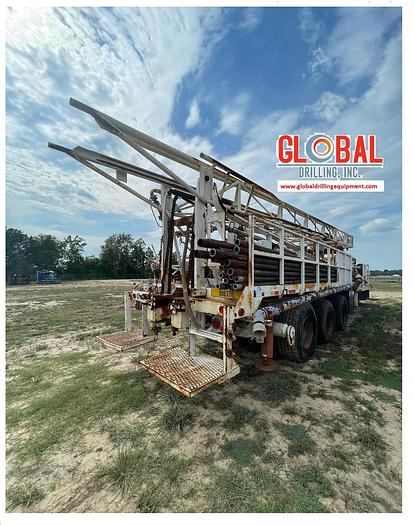

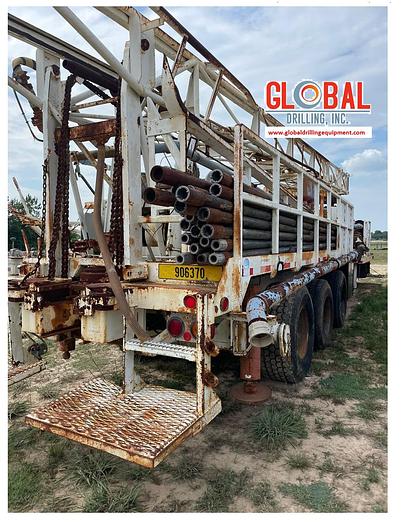

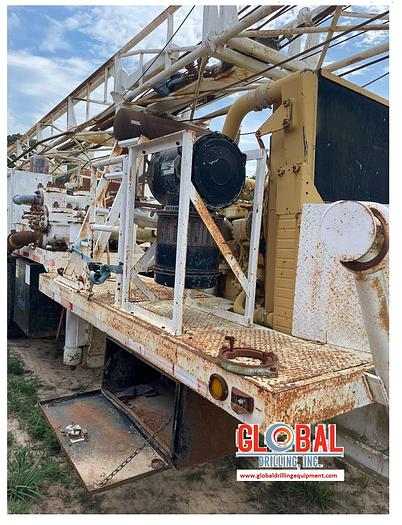

2006 Failing CF-15 Drill Rig

- SN: 906370

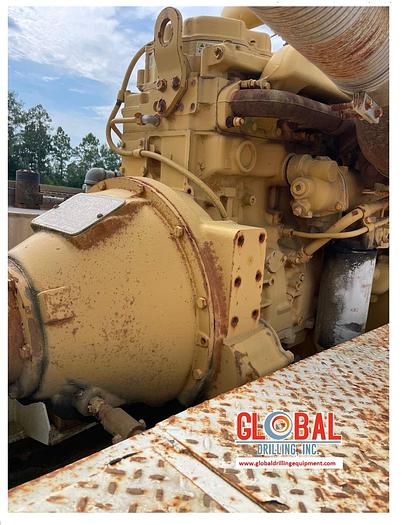

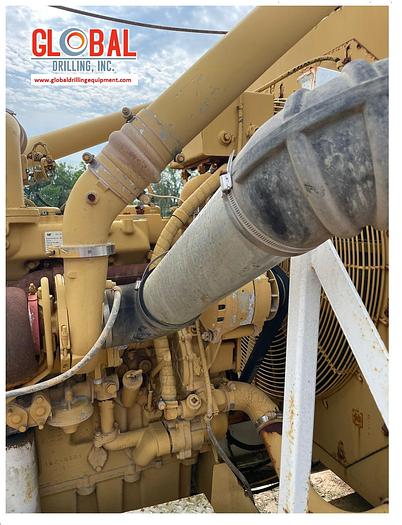

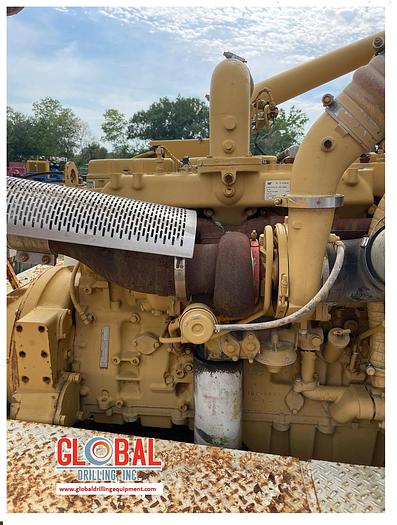

- CAT C10 Engine S/N BCX00222; 365HP; 272 kW

- Gardner-Denver 5-1/2” x 8” Duplex Pump

- Item 0562 (B)

- Condition: Used

- Location: Texas, USA

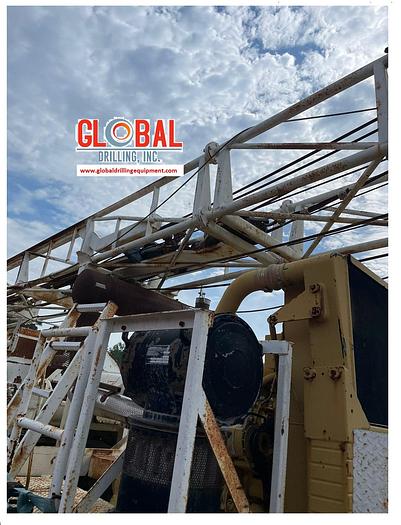

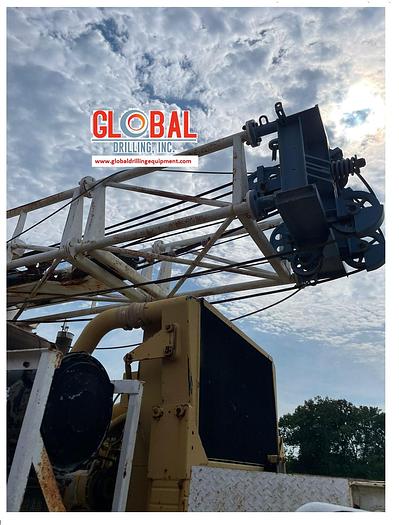

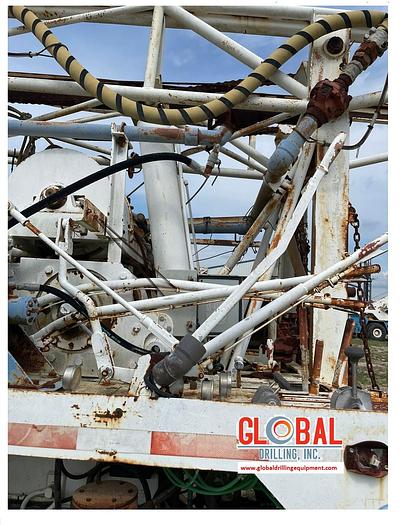

MAST ASSEMBLY :

-          Heavy duty deep designed mat 39’ tubular steel, two piece mast.

-          Gross capacity 45,000 lbs

-          Two deadline anchors in a crown raised and lowered by two mast raising cylinders with safety checks and chrome plated push rods. Wired for electric lights

 DRILL FRAME :

-          Electric welded structural steel frame with stringers and reinforced cross members, steel tool box located in the drill frame

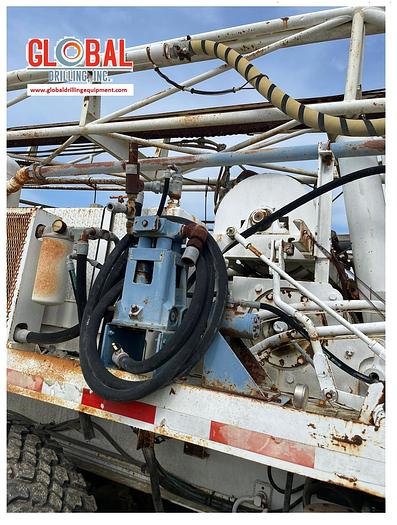

 DRAWWORKS :

-          Double drum hoist. Each drum has 8-3/4” spool length and 6” width brake bands mounted on a single drum with individual Wichita 14” three-plate friction clutches controlled by individual brake controls. Single line pull, bare drum 15,000 lbs.

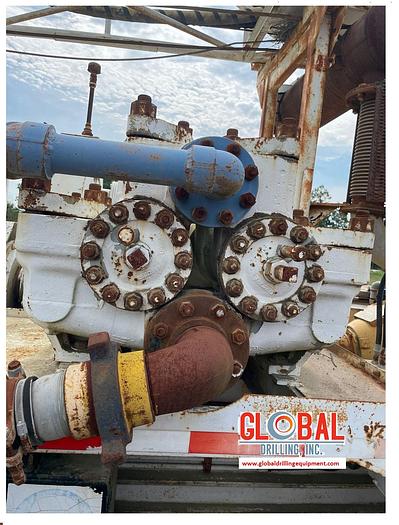

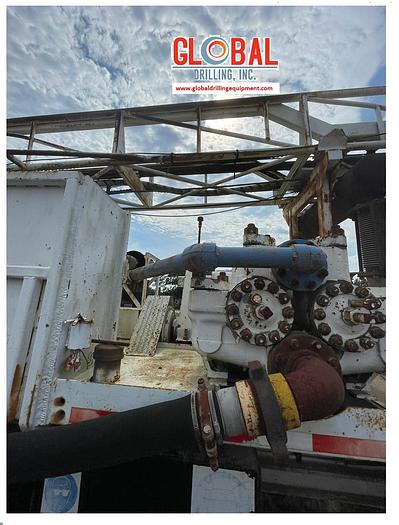

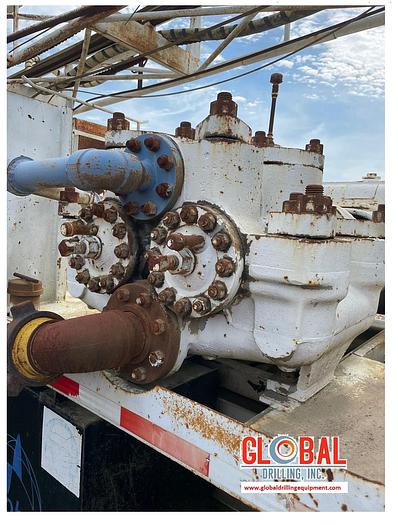

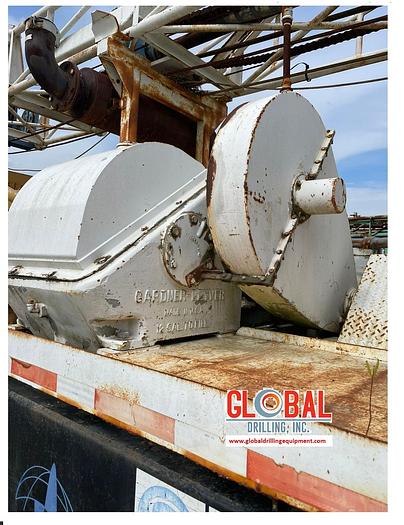

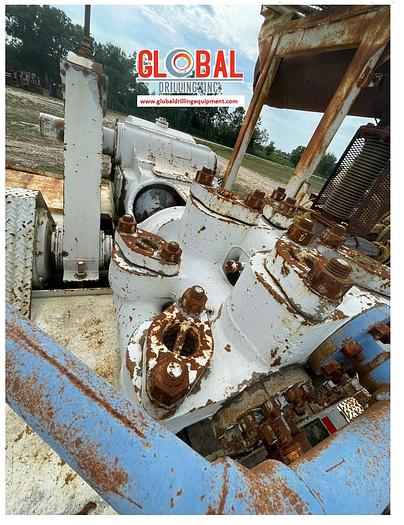

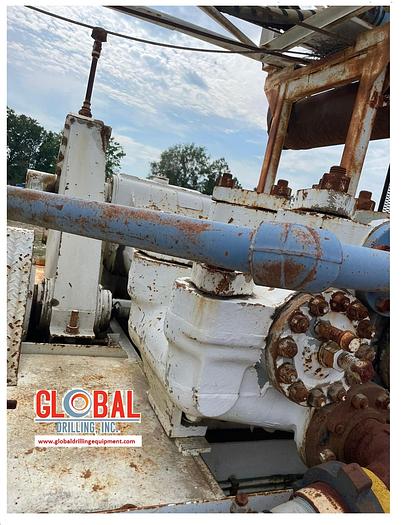

 MUD PUMP :

-          Gardner Denver 5-1/2” x 8” Duplex pump. 2-1/2” Flow line and stand pipe

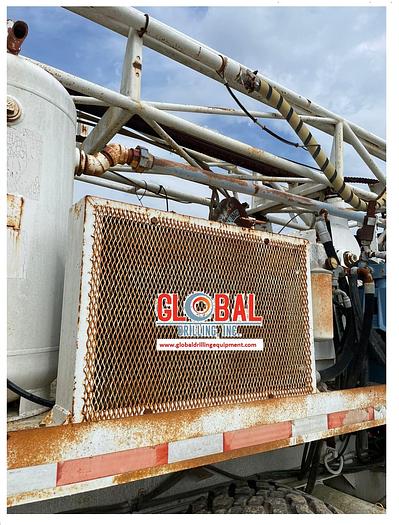

 AIR COMPRESSOR :

-          LeRoi Model 100-SDS two-stage

 SUB-DRIVE CASE :

-          Multiple roller chains enclosed in a heavy-duty oil-tight case, splash fabricated, ball bearing throughout.

 TRANSMISSION :

-          Heavy-duty four-speed, single plate 12” rotary clutch ahead of transmission, remote controlled from the driller’s station

 ROTARY TABLE :

-          5-5/16” Heavy-duty, hydraulically retractable

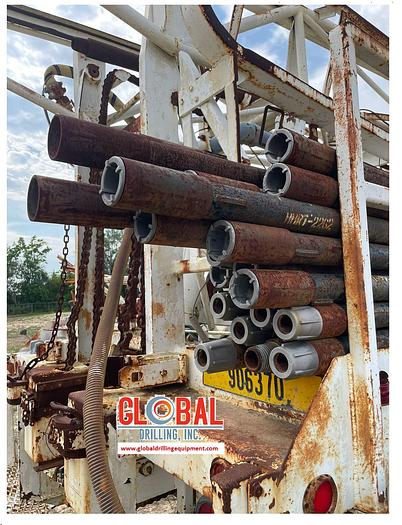

 ROD RACK :

-          Including 27-pcs of new drill pipes. Size: 2-7/8” OD x 20’ L
